Attached is an extensive inventory of equipment documentation and checklist covering all systems. The checklist is an Excel spreadsheet and can be downloaded for your use.
Provided by Bill Ahillen
Category Archives: Uncategorized
Lewmar Hatch Handle Replacement
Several captains have experienced the handles on the cabin roof hatches break off. Several have attempted to epoxy them back in place but over a short time they break off again.
Lewmar has a kit to replace these though West Marine couldn’t find the correct one. The correct part number with Lewmar is 360255990. In this approach, you drill a hole through the lens and create a mechanical rather than glue connection for the new handle. This seems to be the best approach. Be sure it looks like what you have to make sure it is correct. It will have a “button” on top of the hatch bolted to the handle below.
I have purchased them from APS (http://www.apsltd.com/catalogsearch/result/?q=360255990) in Annapolis for roughly $16..
You need to be logged in to see the rest of this content. Catalina380-IA members, please login.
To join please fill out a membership application (Association->Membership Application) and send a check to the address on the form.

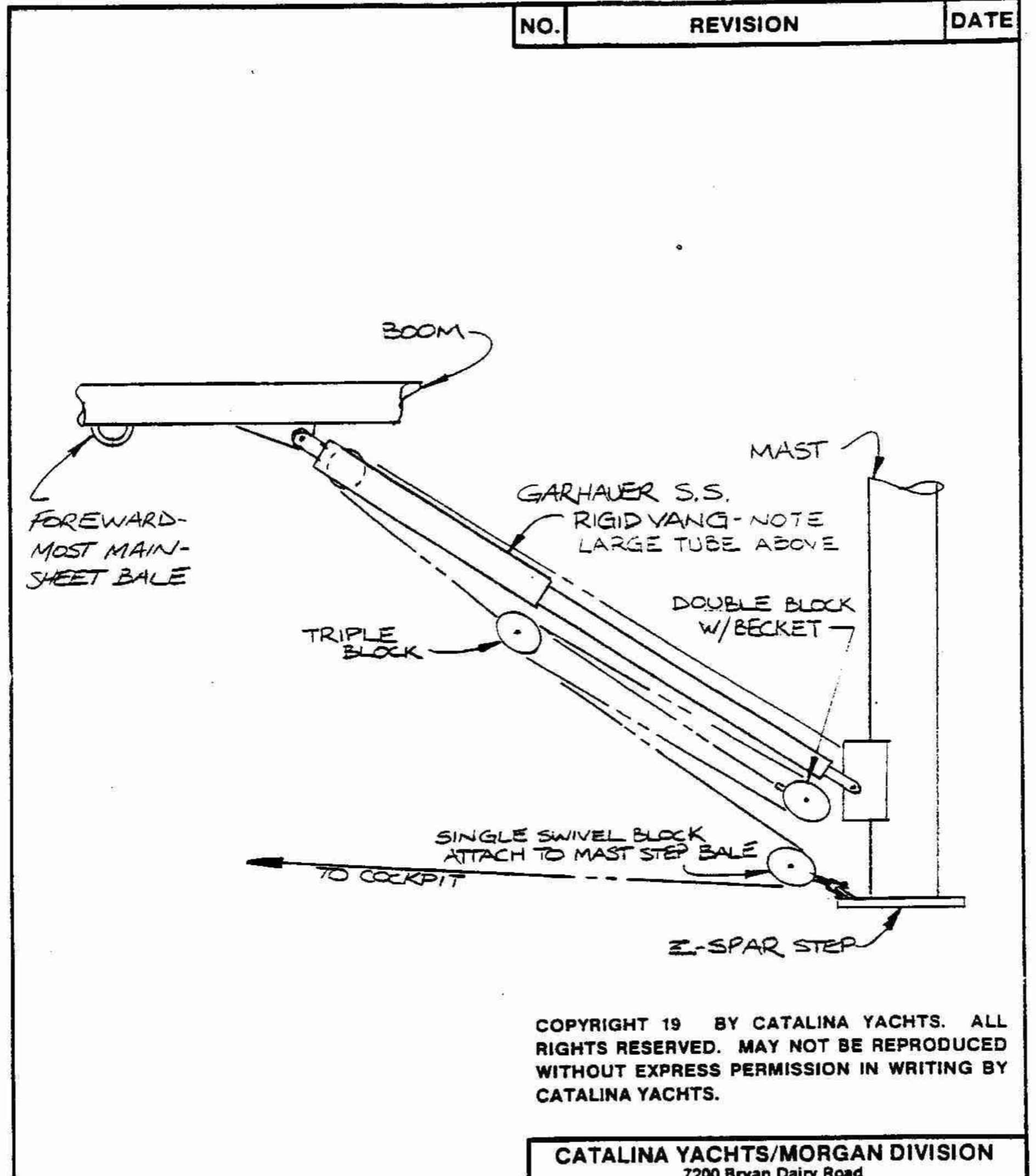

Boom Vang Diagram for C380
You need to be logged in to see the rest of this content. Catalina380-IA members, please login.
To join please fill out a membership application (Association->Membership Application) and send a check to the address on the form.
C385 Alternator/Voltage Regulator
I recently became the owner of C85#71 and took my first extended cruise on her last month. I discovered that the two 4D batteries she came with aren’t enough to keep up with the load when I run both the refrigerator and the freezer (which seem to pull an average of about 5 amps, or about 120 amp hours in a day, too much for the 160 amp hour rated battery.) I don’t have a genset, so the only way to recharge the house bank when not plugged into shore power is to run the engine. But at the rate the original alternator charges up, it takes at least a couple of hours to top off the house bank.
I understand that part of the problem is that the internal regulator on the alternator isn’t designed to do a rapid recharge of a house bank. I’m considering installing an external voltage regulator, and maybe replacing the alternator. The alternator that came with the boat is rated at 125 amps, bigger than the 55 amp version I gather was standard on some of the earlier hulls. The current alternator should be plenty big, but I don’t know if it would be possible simply to put on a Balmar or other external regulator, rewiring the alternator to take the internal regulator out of the circuit. Or would it be better to replace the alternator, too? I’d appreciate any advice.
Preheat Switch
I have a C380 Hull#223 “Calypso”. The weather is getting cold and my Westerbeke 42b4 manual says hit the PreHeat Switch before starting. I might be lame, but cannot find on my pedestal. Any ideas as to where I can find it? Pictures?
Thanks, Ralph
Air-conditioning on 2008 Catalina 387
Air-conditioning on 2008 Catalina 387
I want to replace the original 16000 BTU unit under the V berth with like kind and quality. Anybody know how they go it in there, how to get it out, and get new one in. Open to suggestions for Make and Model for a new unit.
Thanks
Captain Charlie Knupp
30 amp power cord
I have a 2002 Catalina 390. Is it recommend to plug in 2-30 amp cords to shore power when running AC, refrigerator, and microwave? Without the microwave we are using around 10 amps.
Thanks,
wes
You need to be logged in to see the rest of this content. Catalina380-IA members, please login.
To join please fill out a membership application (Association->Membership Application) and send a check to the address on the form.
Preheat Switch
I have a C380 Hull#223. The weather getting cold and my westerbeke 42b4 manual says hit the PreHeat Switch before starting. I might be lame, but cannot find on my pedestal. Any ideas as to where I can find it?

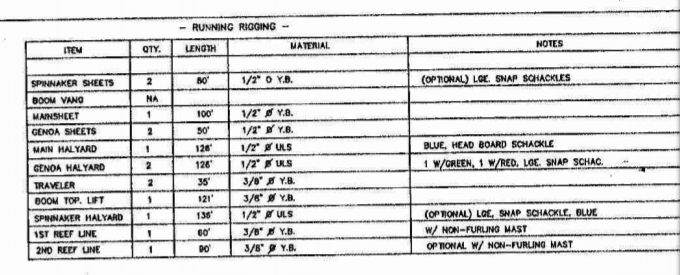

Catalina 380 Line Sizes
From the Catalina 380 manual, page 21:
You need to be logged in to see the rest of this content. Catalina380-IA members, please login.
To join please fill out a membership application (Association->Membership Application) and send a check to the address on the form.
air conditioning on the Catalina 387
I have 2 ac units on this Catalina 2008 16000 BTU under V Berth and 7000 BTU in aft closet. The AC Coil in the V Berth that has been protected with a filter(always clean) has become totally degraded; when I take a vacuum and a brush to clean, it isn’t dirt that is coming off the fins, it is metal debris from same; I can’t even imagine how the ac is even able to cool. Anyway, being that the unit is 9 years old, I don’t trust it and want to replace. The problem unit is the 16000 BTU in the forward V Berth The unit that is in there is a Marvair SeaMach; I can’t begin to figure out how the hell they got it in there or how to get it out and how I can install a new like and kind. Any suggestions from my fellow Catalina owners. Thanks Charlie Knupp sailboat DAFFY Fort Lauderdale FL
