NG2 Masthead Assembly

Leave a comment
From Bill Worsley Southern Skies C-380 #302
My C-380 is hull # 302 and I have an Isomat NG-70 spar with an Isomat NG-2 masthead cover.  I think there have been several masts for the C-380, Jim’s being one of the original.  Based on hull numbers, I think we may have the same mast – many would say it is a Charleston spar, but actually Isomat design (see the discussion on the rigrite website about Charleston Spars).  If you go to rigrite.com website and follow this path, you will get to a diagram of the masthead assembly:
Spars\Isomat Spars\Mast Specs and Components\NG-70\Masthead Parts\NG2 Masthead Assembly

Note that the cover plate is held in place by two “feet” that slip into the top forward part of the mast body and is bolted down on the aft end by two hex head bolts.  This only gives you access to the sheaves.  All

You need to be logged in to see the rest of this content.  Catalina380-IA members, please login.

To join please fill out a membership application (Association->Membership Application) and send a check to the address on the form.

Mast

380 Deckplate Photos – Source of Leak

Leave a comment

Water can get into the bilge through the mast and down the compression post.  There is a weep hole in the deck plate that often is obstructed so the only place for the water to go is into the boat.

The photo below is the bottom side of the deck plate.  If you look at this from the top, it looks like there are a number of weep holes around the sides but those objects are simply cutouts for the bolts.  The weep hole is the small grove at the top o the picture.  IMHO: It is too small and gets blocked easily.

From Mike and Morning Glory



Compression Post Deck Plate

You need to be logged in to see the rest of this content.  Catalina380-IA members, please login.

To join please fill out a membership application (Association->Membership Application) and send a check to the address on the form.

Mast, Repair/Replace/Maintain, Rig

Replacing damaged mast step

Leave a comment

My 2006, 387 hull #106 has developed. a concerning problem with the cast alloy sparcraft mast step secures the base of the mast to the deck. The mast step is secured to the deck via 4 corner bolts and in my case the casting has fractured in 2 of the corners so now only secured via 2 bolts with the remainder no longer effective.

old step


After sourcing the replacement part #FM-580 from Sparcraft France, next steps were to secure a rigger to undertake the work and prepare for the day to ensure the riggers costs were minimised. In our case we elected to jack the mast manually to avoid significant cost blowouts the use of a crane can trigger.

Preparation tasks:

  • Source some 2 mm high-density polyethylene plastic sheet, trace a template of the mast step with a marker, cutting this using scissors seemed to work best, this is required to

You need to be logged in to see the rest of this content.  Catalina380-IA members, please login.

To join please fill out a membership application (Association->Membership Application) and send a check to the address on the form.

Mast

Charleston Spar Parts

Leave a comment

Just  a heads up all the Charleston Spar (Sparcraft) replacement parts have all been moved to Rig-rite in RI.

Thanks,
Steve
C380 #93

You need to be logged in to see the rest of this content.  Catalina380-IA members, please login.

To join please fill out a membership application (Association->Membership Application) and send a check to the address on the form.

Mast

Spar Manufacturers

Leave a comment

These are the spars that I know about:

Early: #1 thru >80 ZSpar (I believe, what you have?)

Mid: <117 thru >304 Charleston

Later (?): >304 Seldon (?)  I’m not positive but I think they were all Charlestons til the end (Jay Saxton will know)

I have no idea on 387’s but I’m pretty sure there are Seldon’s as people here have spoken of them. [Editor:  My C387 #96 had Charleston Spar]

What I do know is that #117 (at least) through my 199, and probably beyond, have the same masthead casting pictured in the Mainsheet article I did a couple issues ago showing the spinnaker crane installation.  I know Paul on 170 has it too.  That is the OC2 (Ocean series, number 2) masthead and was used way back in the 80’s on Isomat spars too.  Charleston bought Isomat at some point and continued using the castings and extrusions.

You need to be logged in to see the rest of this content.  Catalina380-IA members, please login.

To join please fill out a membership application (Association->Membership Application) and send a check to the address on the form.

Mast, Repair/Replace/Maintain

Mast Sheaves

Leave a comment

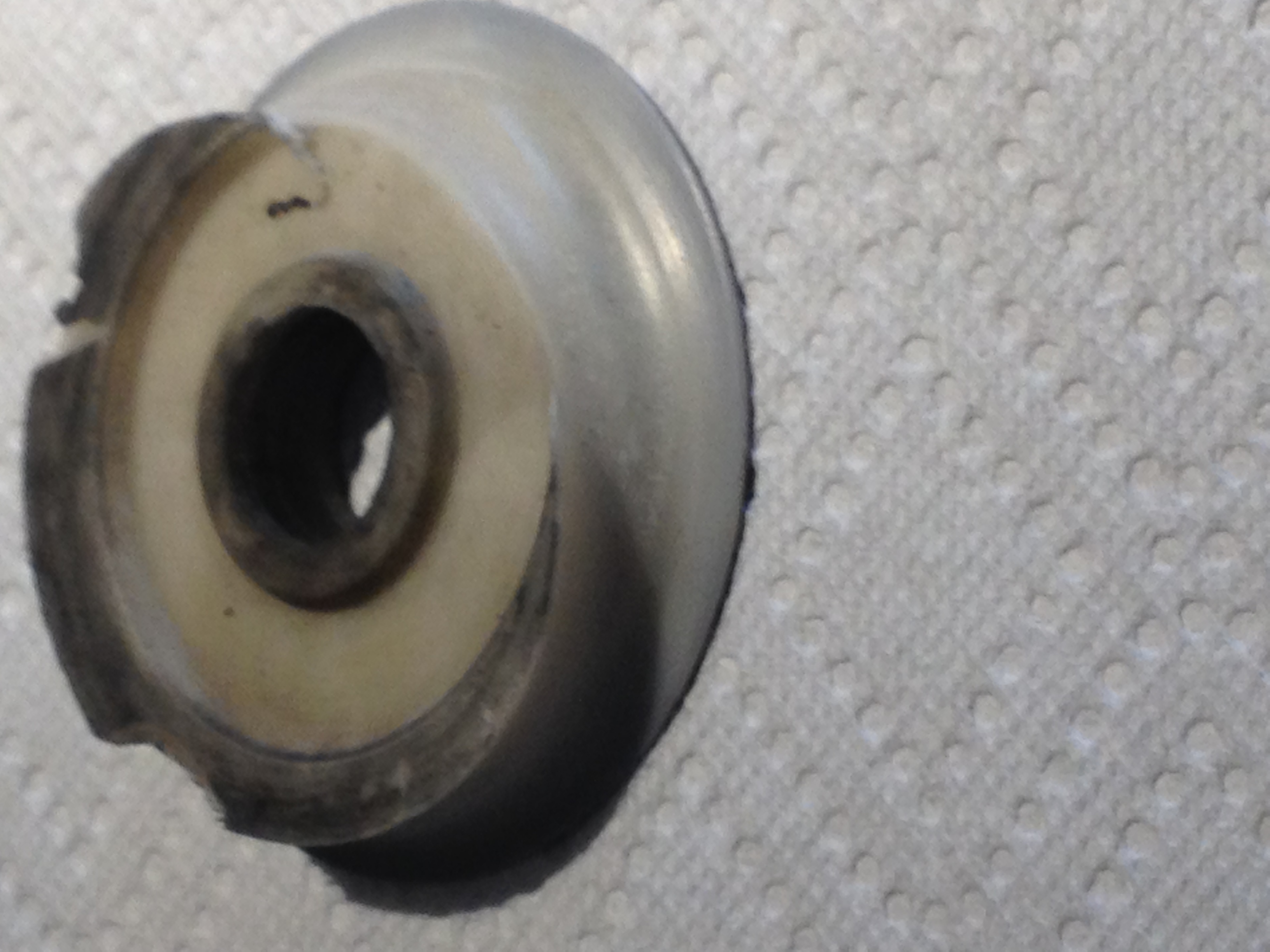

FYI for anyone interested. the pic below is one of the rear main halyard sheaves. As you can see the one side is worn right off. the previous owner had oversized halyards and as you can see bigger isn’t always better. so if you are finding the main harder to hoist or it’s not dropping as easily have a good look at the sheaves. I replaced all 6 with ones from Garhauer with bearings as well as new axles from Rigrite.
